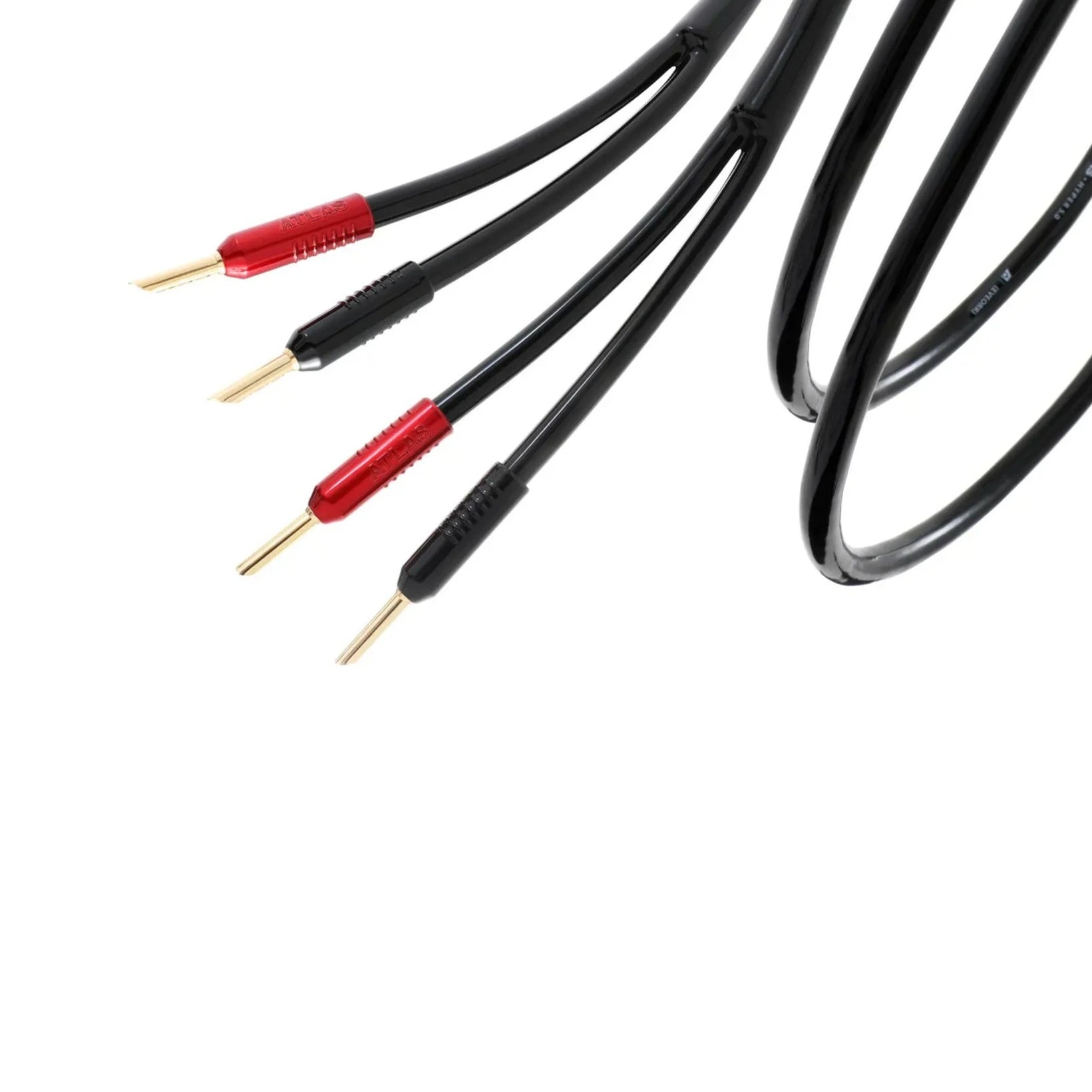

Atlas Hyper Achromatic Z 5.0 Speaker Cables

Atlas Hyper Achromatic Z 5.0 Speaker Cables

DESCRIPTION AND FEATURES

IN THE BOX: 2 speaker cables – for 2 speakers

Based on our acclaimed Hyper 3.5 but with an increased conductor diameter improving performance capability. Available terminated in Z (Z-plug).

Perhaps best considered the ‘long-wheelbase’ version of our Hyper 3.5, offering a step-up in overall performance with improved bass accuracy and control. Hyper Achromatic Speaker Z 5.0 is particularly well-suited for use in longer cable runs.

The quality of the twin 5.0mm² OFC copper conductors, wrapped in a cotton anti-vibration filler and high-efficiency FEP dielectric allow Hyper to reveal more of the performance level of which your equipment is capable.

Cold-weld factory termination is with our non-magnetic Achromatic Z plugs, eliminating any possible detrimental effects from magnetic eddy currents. Precision-calibrated cold-weld termination gives a more consistent connection with improved reliability and increased signal continuity over conventional solder fixing.

Achromatic Z Plug

Our proprietary Beryllium Achromatic Z Plug is a low-mass, self-cleaning, solder-free construction speaker plug.

Precision-built.

Cold-weld terminated with Atlas Achromatic Z (4mm).

High precision calibrated pneumatic cold-weld crimp connection.

OFC

OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.

Microporous PTFE

Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.

Twin-core round

A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a protective round PVC sheath.

SPECIFICATIONS

Construction: Twin-core round

Conductors: 2 x OFC 5mm² conductors

Material: 6n OFC

Dielectric: PTFE (Teflon™)

Screen: none

Capacitance: 72.40 pF/m

Inductance: 0.541 µH/m

Resistance: 0.00347 Ohms/m

VOP: 0.72

Outside Diameter: 8.5 mm

THE ATLAS DIFFERENCE

Conductor Purity

Manufacturing Consistency

Signal Screening

Harmony of Materials

Acclaimed in 30+ Countries

Custom Made & Shipped: 7-21 days

These cables are custom made to your specifications. The process takes 7-21 days. The cable is packaged and shipped via UPS Ground from New York. Custom-made cables cannot be returned.

ATLAS CODE, LENGTH

HY-5.0-ACH-SC-2, 2M

HY-5.0-ACH-SC-3, 3M

HY-5.0-ACH-SC-4, 4M

HY-5.0-ACH-SC-5, 5M

HY-5.0-ACH-SC-7, 7M
